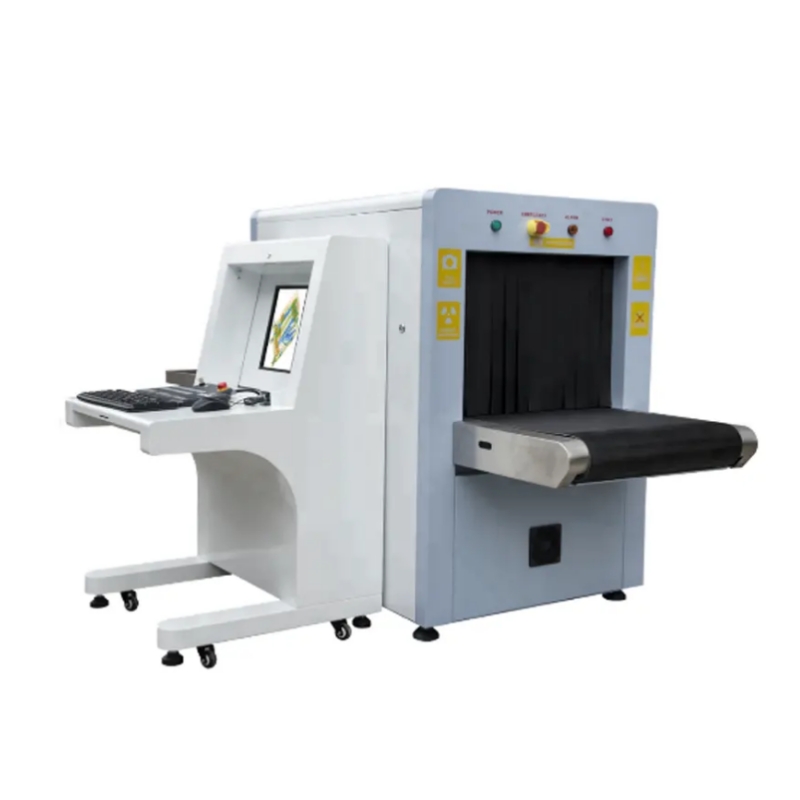

X Ray Luggage Scanner

X RAY-6550A

Technical Parameters

Basic parameters
Channel size: 655*505mm (width*height)
Power belt speed: 0.22m/s
Portal load: 120 (uniform load)
Passage:> 38mm steel plate
Line split force:> 38AWG
Space resolution: horizontal/vertical φ1.0mm
X -ray source
Control interface: Simulation interface
Tube voltage: 140 ～ 160kV (adjustable)
Pipe current: 0.6 ～ 12mA (adjustable)
Cooling method: sealing oil and cooling, industrial
fan cooling
Work Zhou Ming: 100 %, no top heat
Protection function: over pressure, overcurrent,
over -temperature protection
Radiation safety index
Dose rate: <0.5 μgy/h (5cm from the shell)
Single dose: <1.0 μgy
Safety: Safety of film, chip, and electronic
products
Radiation protection: The entrance and
export of the channel adopt a 0.5mmpb
double layer, environmentally friendly lead
curtain protection, and the main body uses
2 to 6mm lead plate protection to ensure
that the peripheral radiation of the
equipment meets national security
standards
Installation data
Noise level: <58db (a)
Weight: 450kg
Power consumption: 0.5 kW (MAX)
Power: AC220W ± 10 %, 60Hz ± 5Hz
Channel height: 650mm

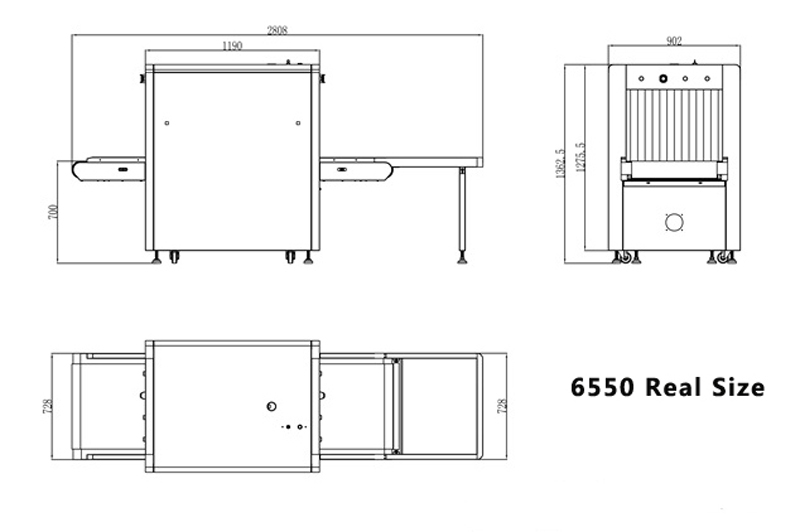

Device size: 1900mm (L)*920mm
(W)*1280mm (h)
Packaging size: 1970mm (L)*990mm
(W)*1450mm (h)
