Basic parameters

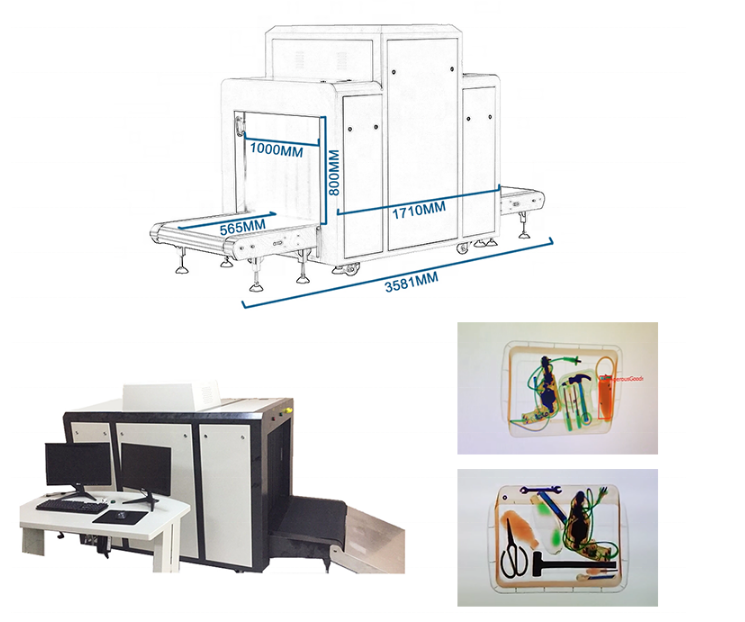

Channel size: 1005*805mm (width*height)
Power belt speed: 0.22m/s
Passage load: 200kg (uniform load)
Passage:> 38mm steel plate
Line split force:> 38AWG
Space resolution: horizontal/vertical φ1.0mm
X -ray source
Control interface: Simulation interface
Tube voltage: 140kV (adjustable)
Tube current: 0.6 ～ 1.2ma (adjustable)
Cooling method: sealing oil and cooling, industrial
fan cooling
Work Zhou Ming: 100 %, no top heat
Protection function: over pressure, overcurrent,

over -temperature protection

Radiation safety index
Dose rate: <0.5 μgy/h (5cm from the shell)
Single dose: <1.0 μgy
Safety: Safety of film, chip, and electronic
products
Radiation protection: The entrance and
export of the channel adopt a 0.5mmpb
double layer, environmentally friendly lead
curtain protection, and the main body uses
2 to 6mm lead plate protection to ensure
that the peripheral radiation of the
equipment meets national security
standards
Installation data
Noise level: <58db (a)
Weight: 730kg
Power consumption: 0.6 kw (max)
Power: AC220W ± 10 %, 60Hz ± 5Hz
Channel height: 380mm
Device size: 3020mm (L)*1310mm
(W)*1640mm (h)
Packaging size: 2170mm (L)*1380mm
(w)*1810mm (h)
