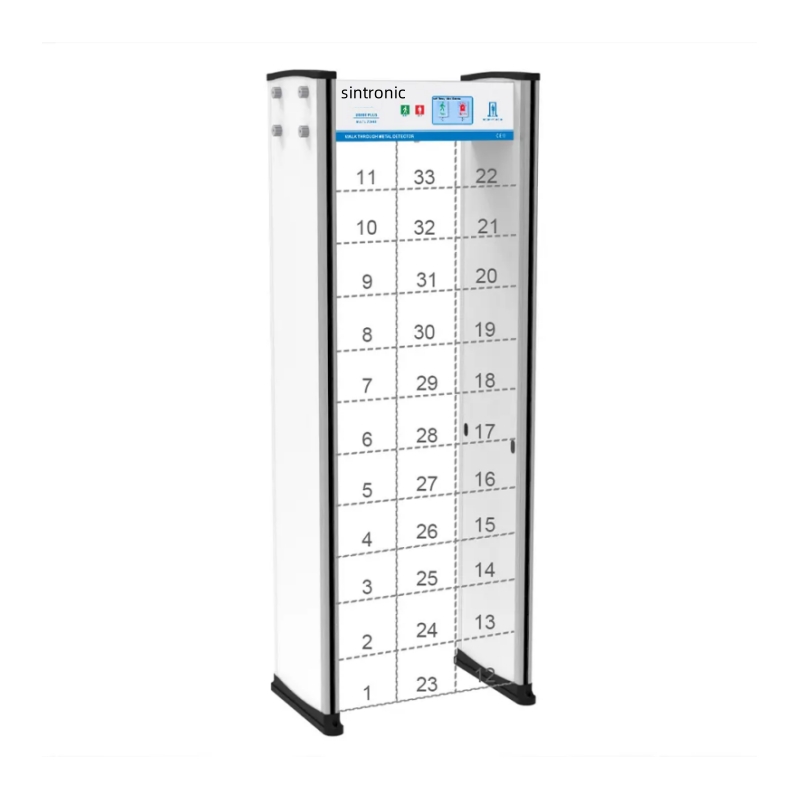

33 Zones Walk Through Metal Detector
Technical Parameters
1. Detection procedure: level sensitivity
adjustment, which can meet the needs of
different occasions.
2. Personnel passing rate: more than 40 persontimes per minute.
3. Power supply: 110-240V AC, 50/60Hz, power
consumption: ≤18W.
4. Testing standard: one yuan coin

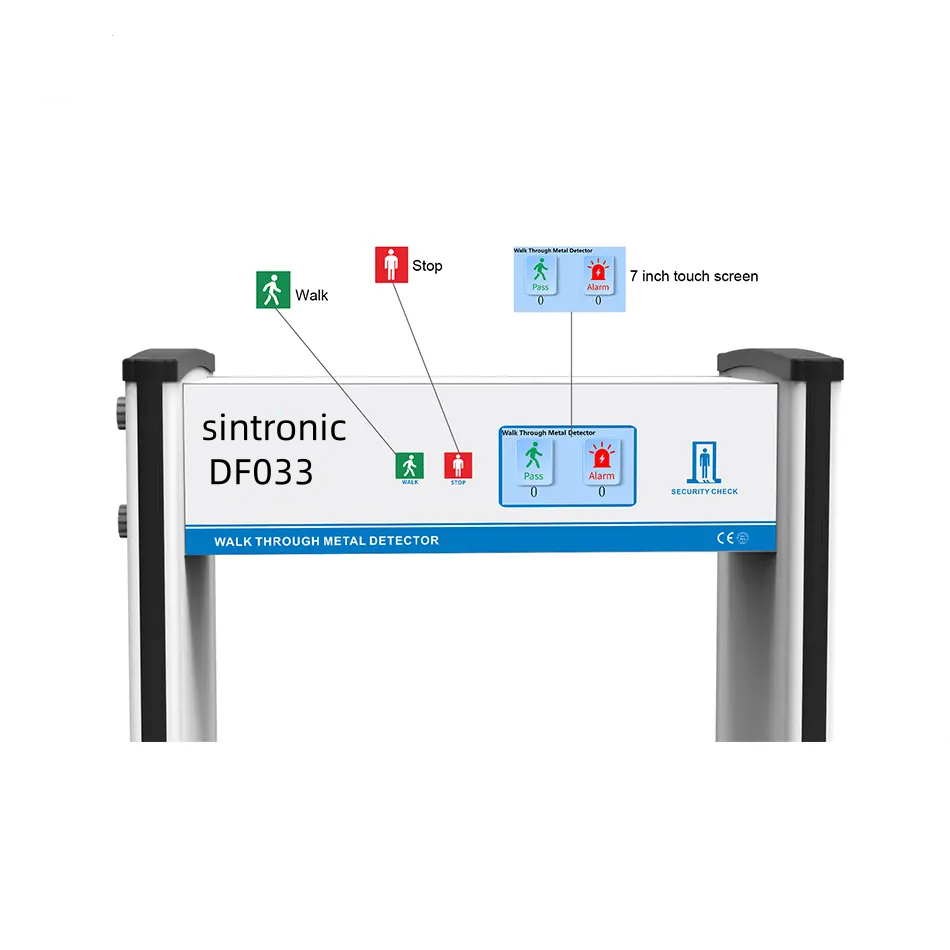

5. Display mode: 33-zone 2.5-inch small LCD
screen
6. Working environment: -10℃~45℃, ≤95%RH.

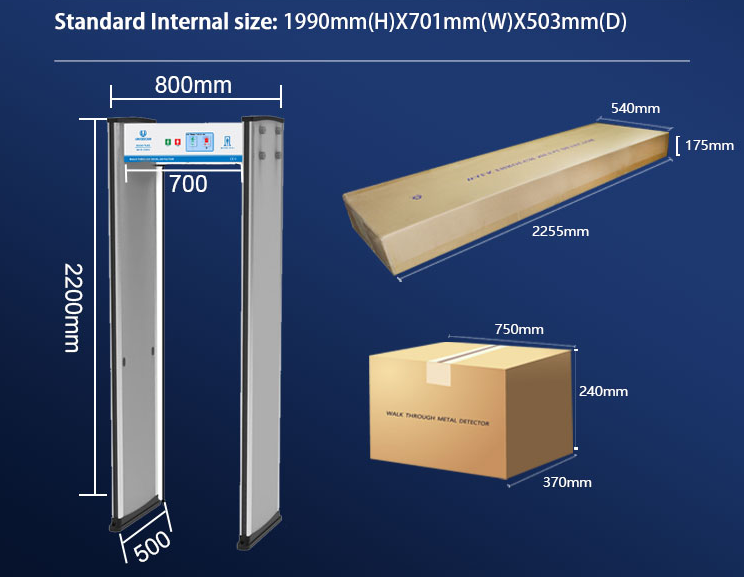

7. Channel size: 1980 (height) * 700
(width) * 600 (depth) mm
8. Dimensions: 2220 (height) * 820 (width)
* 700 (depth) mm
9. Packing size: door panel:
230*680*240mm (2 pieces/carton)
Main box: 530*260*770mm (1pc/box).
10. Net weight: 65kg/set Gross weight:
80kg/set
11. Color: available in iron gray, off-white,
beige and black
