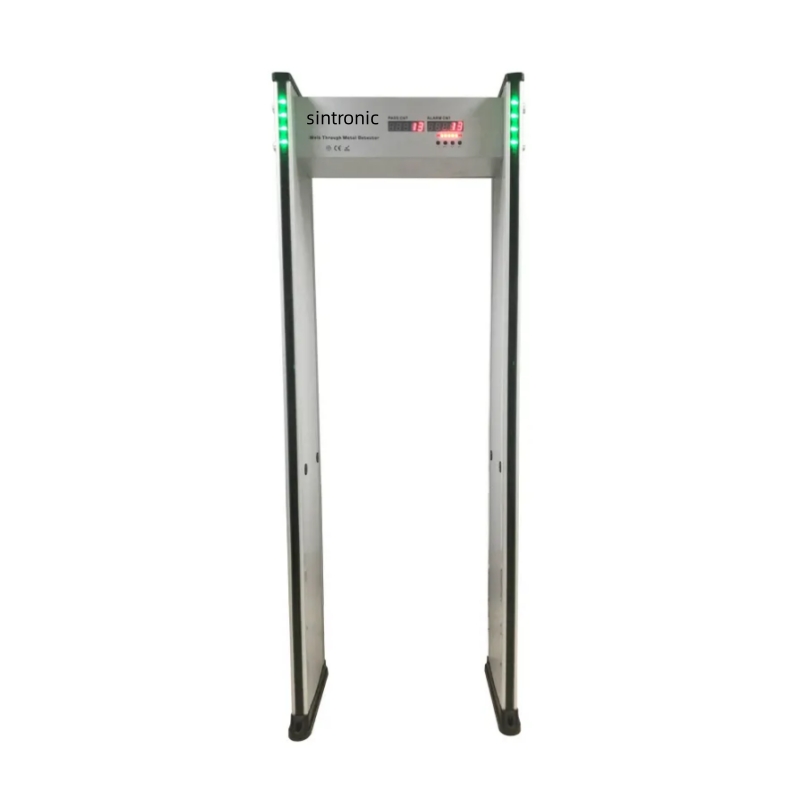

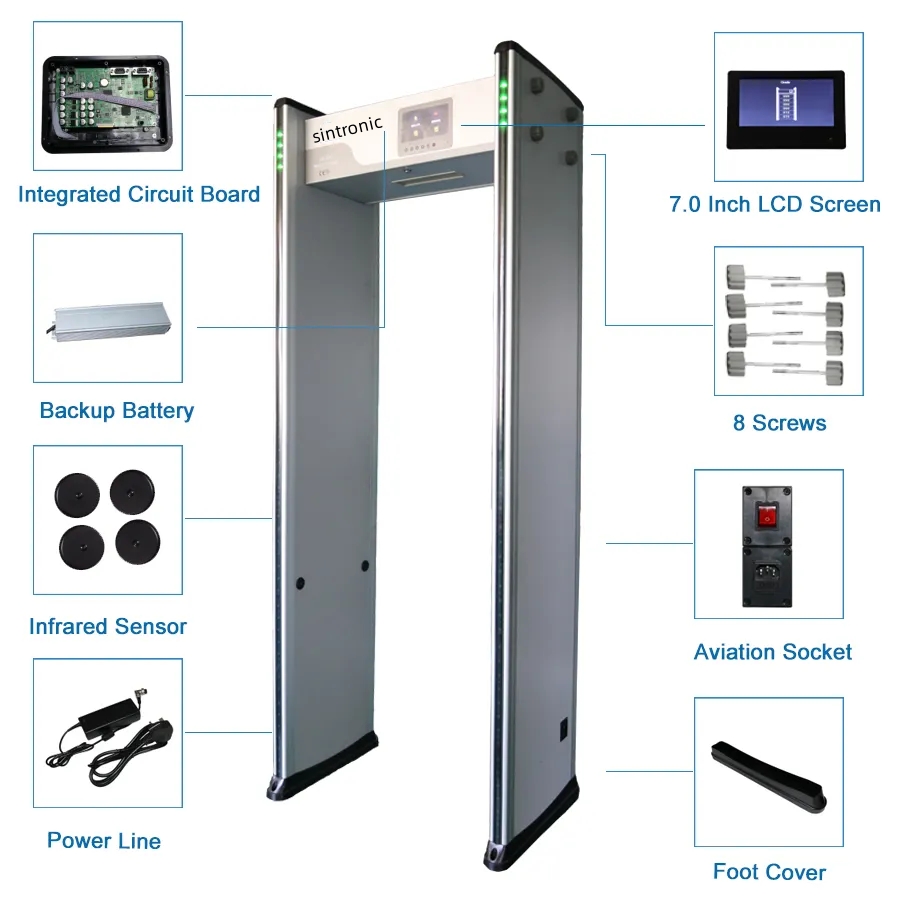

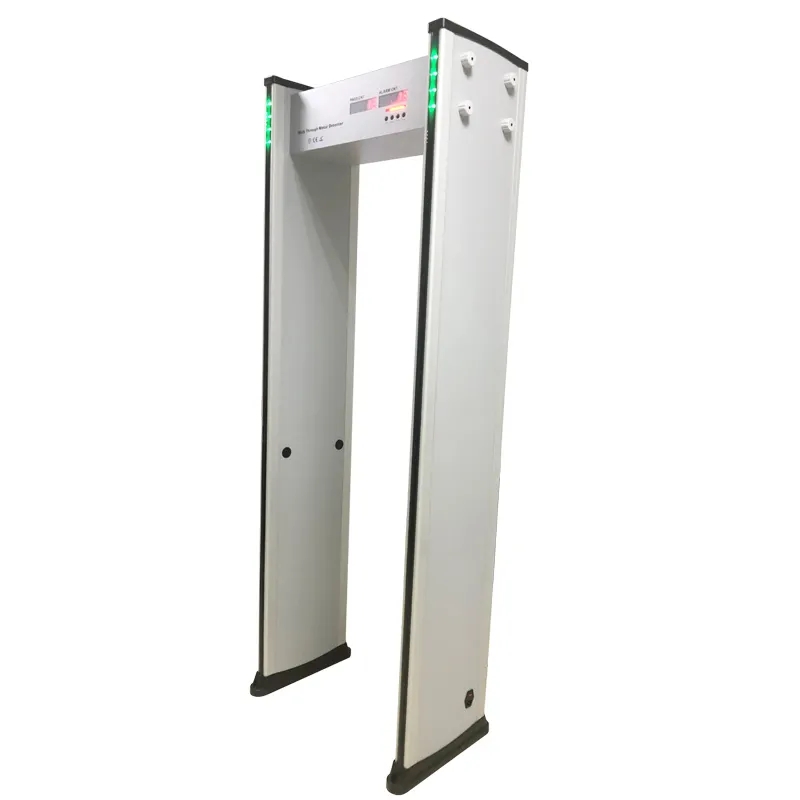

18 Zones Walk Through Metal Detector
Technical Parameters
1. Detection procedure: level sensitivity
adjustment, which can meet the needs of
different occasions.
2. Personnel passing rate: more than 40 persontimes per minute.
3. Power supply: 110-240V AC, 50/60Hz, power
consumption: ≤18W.
4. Testing standard: one yuan coin

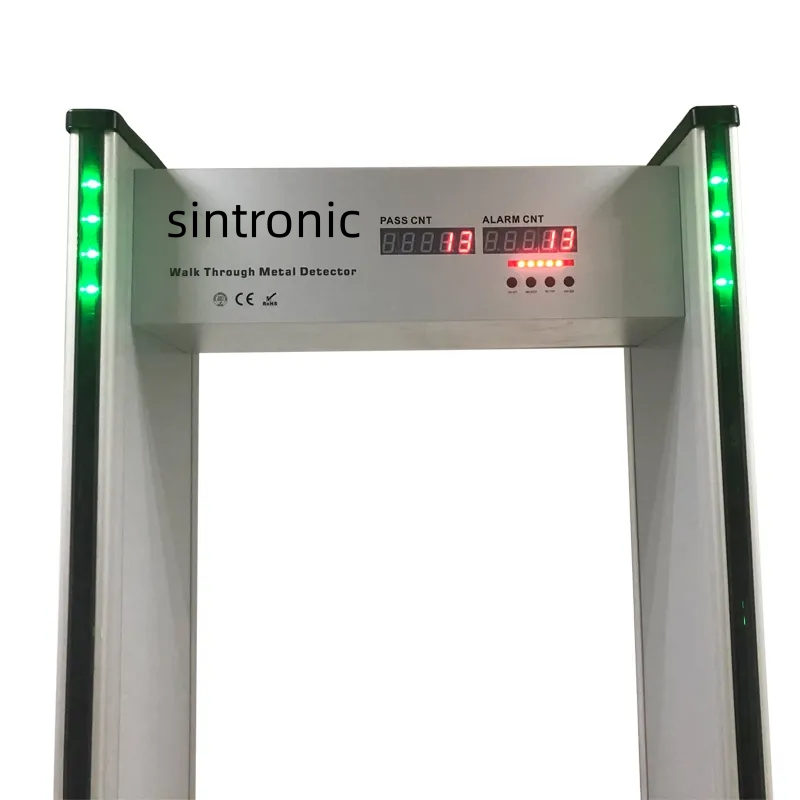

5. Display mode: 18-zone 6-inch large LCD display
6. Working environment: -10℃~45℃, ≤95%RH.
7. Channel size: 1980 (height) * 700
(width) * 500 (depth) mm
8. Dimensions: 2220 (height) * 820 (width)
* 580 (depth) mm
9. Packing size: door panel:
2280*570*210mm (2 pieces/carton)
Main box: 770*530*260mm (1pc/box).
10. Net weight: 55kg/set Gross weight:
68kg/set
11. Color: available in iron gray, off-white,
beige and black
12. The channel gate can be connected,
and the computer can view and modify the
parameters
